Z Bars
Description

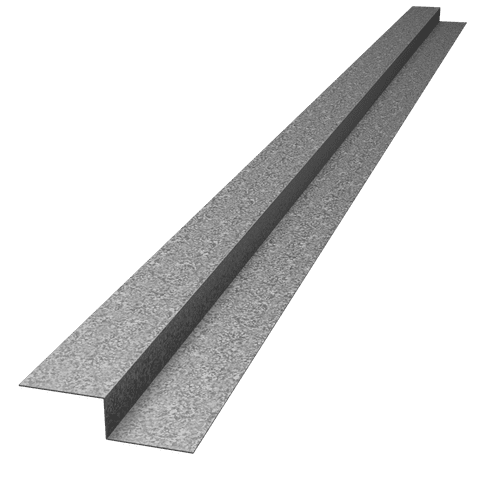

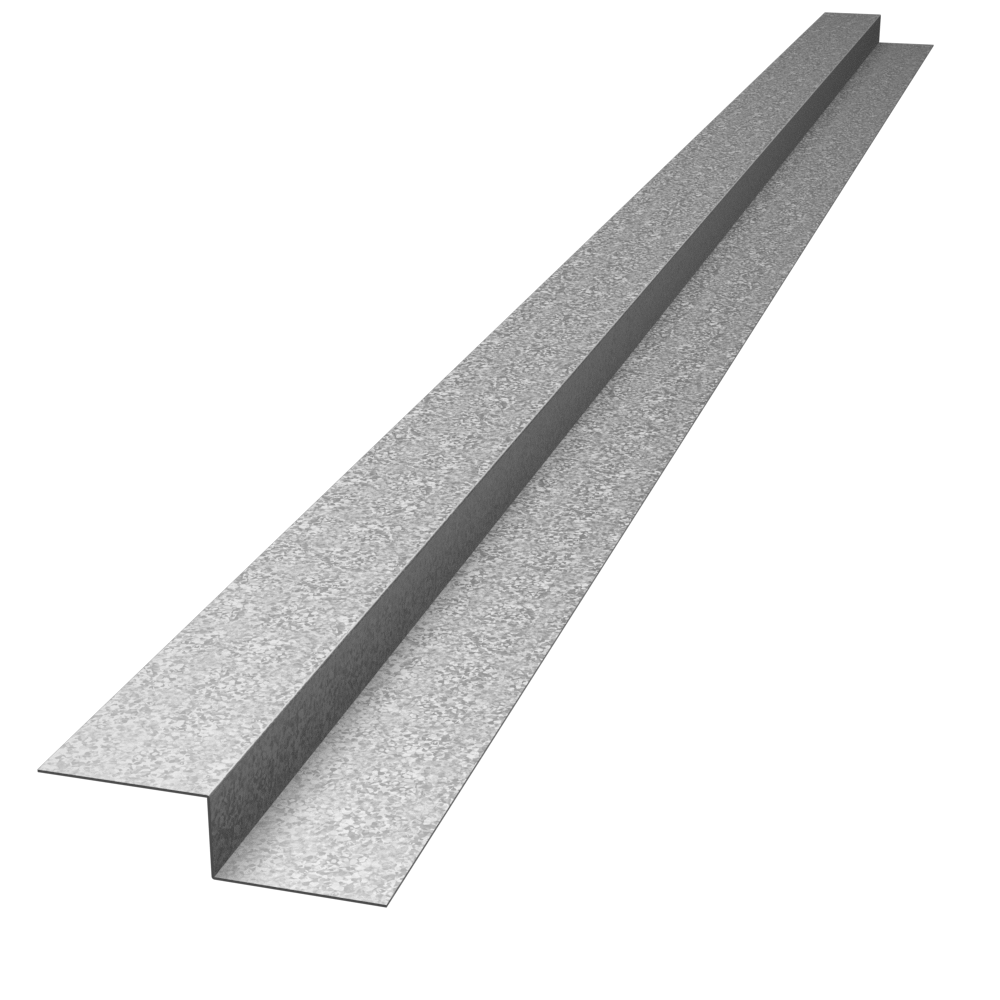

Z Bar is made of 28 or 26 Gauge Galvanized or Zincalume Steel, 10′ long. Banded 90°, 105° or 110°. Z Bar is used to protect the horizontal joints between sheets of siding from water infiltration. The large leg of the metal goes against the wall, leaving the seat and face covering the top edge of the siding. The seat dimension, 1 in., corresponds to the siding thickness. For architectural, residential, and commercial roofing. ASTM A-653, ASTM A-792
| Variant |
|---|
| Galvanized 2-1/8 (1/2 x 5/8 x …) |
| Galvanized 2-1/8 (1/2 x 5/8 x …) |
| Galvanized 2-1/8 (1/2 x 5/8 x …) |
| Galvanized 2-3/8 (1 x 3/8 x 1…) |
| Galvanized 2-3/8 (1 x 3/8 x 1…) |
| Galvanized 2-3/8 (1 x 3/8 x 1…) |
| Galvanized 2-5/8 (1 x 5/8 x 1…) |
| Galvanized 2-5/8 (1 x 5/8 x 1…) |
| Galvanized 2-5/8 (1 x 5/8 x 1…) |
| Galvanized 3 (1 x 1 x 1) 90° |
| Galvanized 3 (1 x 1 x 1) 105° |
| Galvanized 3 (1 x 1 x 1) 110° |
| Galvanized 3 (3/8 x 3/8 x 2…) |
| Galvanized 3 (3/8 x 3/8 x 2…) |
| Galvanized 3 (3/8 x 3/8 x 2…) |
| Galvanized 4 (1/2 x 1-1/2 x 2…) |
| Galvanized 4 (1/2 x 1-1/2 x 2…) |
| Galvanized 4 (1/2 x 1-1/2 x 2…) |
| Galvanized 5 (2 x 1 x 2) 90° |
| Galvanized 5 (2 x 1 x 2) 105° |
| Galvanized 5 (2 x 1 x 2) 110° |
| Galvanized 5-1/2 (2 x 1 x 2-1…) |
| Galvanized 5-1/2 (2 x 1 x 2-1…) |
| Galvanized 5-1/2 (2 x 1 x 2-1…) |
| Galvanized 6 (2 x 1 x 3) 90° |
| Galvanized 6 (2 x 1 x 3) 105° |
| Galvanized 6 (2 x 1 x 3) 110° |
| Galvanized 7 (3 x 1 x 3) 90° |
| Galvanized 7 (3 x 1 x 3) 105° |
| Galvanized 7 (3 x 1 x 3) 110° |
| Zincalume 2-1/8 (1/2 x 5/8 x …) |
| Zincalume 2-1/8 (1/2 x 5/8 x …) |
| Zincalume 2-1/8 (1/2 x 5/8 x …) |
| Zincalume 2-3/8 (1 x 3/8 x 1…) |
| Zincalume 2-3/8 (1 x 3/8 x 1…) |
| Zincalume 2-3/8 (1 x 3/8 x 1…) |
| Zincalume 2-5/8 (1 x 5/8 x 1…) |
| Zincalume 2-5/8 (1 x 5/8 x 1…) |
| Zincalume 2-5/8 (1 x 5/8 x 1…) |
| Zincalume 3 (1 x 1 x 1) 90° |
| Zincalume 3 (1 x 1 x 1) 105° |
| Zincalume 3 (1 x 1 x 1) 110° |
| Zincalume 3 (3/8 x 3/8 x 2…) |
| Zincalume 3 (3/8 x 3/8 x 2…) |
| Zincalume 3 (3/8 x 3/8 x 2…) |
| Zincalume 4 (1/2 x 1-1/2 x 2…) |
| Zincalume 4 (1/2 x 1-1/2 x 2…) |
| Zincalume 5 (2 x 1 x 2) 90° |
| Zincalume 5 (2 x 1 x 2) 105° |
| Zincalume 5 (2 x 1 x 2) 110° |
| Zincalume 5-1/2 (2 x 1 x 2-1…) |
| Zincalume 5-1/2 (2 x 1 x 2-1…) |
| Zincalume 6 (2 x 1 x 3) 105° |
| Zincalume 6 (2 x 1 x 3) 110° |
| Zincalume 7 (3 x 1 x 3) 90° |
| Zincalume 7 (3 x 1 x 3) 105° |
| Zincalume 7 (3 x 1 x 3) 110° |
Product Specifications
Frequently Asked Questions
What steel standards do Z Bars meet?
The applicable standards are ASTM A653 for galvanized steel, and ASTM A792 for Zincalume.
Should I use galvanized or Zincalume for Z Bars?
For Z Bars, galvanized steel is the general-purpose choice; Zincalume holds up longer where salt air or constant damp is a factor.
Where is a Z Bar used on a roof or wall assembly?
Z bars form a metal transition, termination, or support profile at roof and wall assembly joints.
What are the material options for Z Bars?
Z Bars are made from galvanized steel or Zincalume (Galvalume).
What gauge are Z Bars?
Z Bars are made in 26 gauge.
