Description

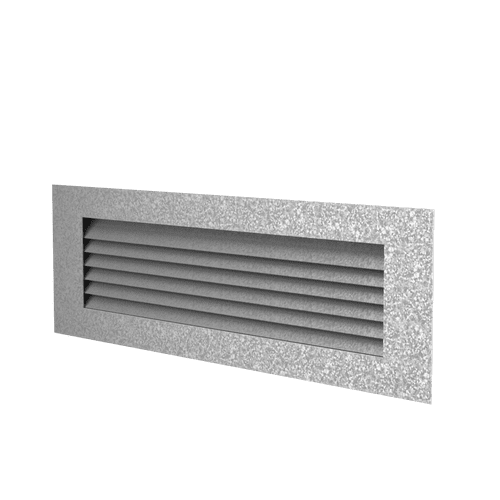

Produced from top-quality ASTM A-653 galvanized steel. Design allows for high air flow while also restricting ember/heat/flame penetration. Guarded by 1/16” galvanized or stainless steel mesh and intumescent tape. Tested and certified by Cal Fire approved lab for ASTM codes E2886 and E2912. WUI COMPLIANT. Other styles, materials (bonderized, stainless steel, copper) are available upon request.
MGV eave foundation and soffit model data
These approximate net free area values are reproduced from Able’s model table. Published size excludes the mounting flange.
| Part number | Published size | Approximate NFA |
|---|---|---|
| 4500-MGV16 | 14 × 3 in. | 20 in² |
| 4780-MGV16 | 14 × 6 in. | 35 in² |
| 4965-MGV16 | 120 × 3 in. | 130 in² |
MGV eave, foundation and soffit specification · Current MGV catalog, page 12
The specification’s separate 36% approximation does not reproduce the 4500-MGV16 and 4780-MGV16 table entries: it gives 15.12 and 30.24 in², respectively. The table above reports the printed model values. Confirm the NFA for the ordered configuration before final project sizing.
OSFM record 8165-2363:0002 identifies soffit vents for horizontal installation and marks specified models, including 4780-MGV16, for vertical installation. For a foundation opening, also confirm the model-specific mounting detail and the evidence accepted for that use. The listing does not make different opening types interchangeable by orientation alone.
Source documents checked November 12, 2026. Confirm the ordered configuration, dimensions, available ventilation area and installation documents for the project.
Frequently Asked Questions
How does an MGV Soffit Vent ventilate the eave in a fire-prone area?

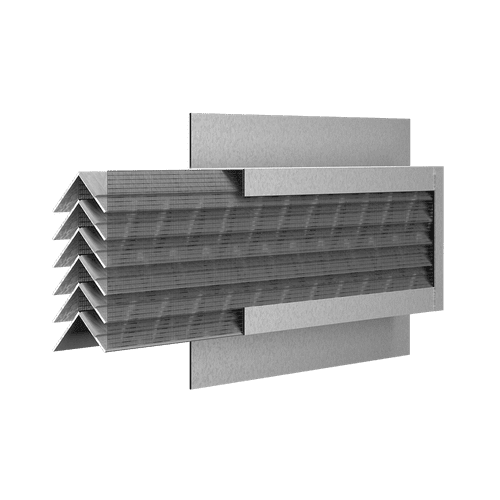

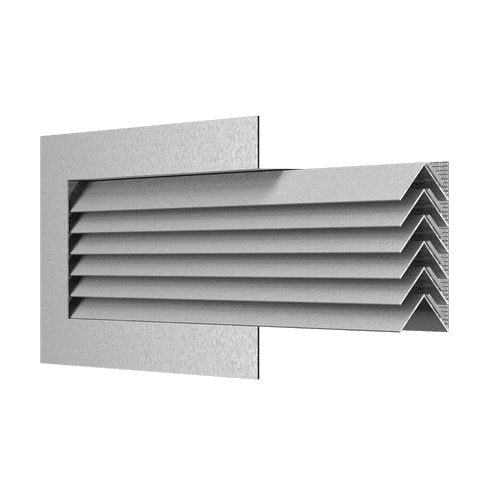

MGV Soffit Vents use a patented design that incorporates chevron-shaped louver blades, dual mesh screen filtration, and intumescent tape. This allows air to flow freely while keeping out any embers and flames.
Which ASTM standard applies to Fire Resistant Multi-Guard Soffit Vents (MGV)?
ASTM A653 applies to the galvanized steel used to make the product.
Can Fire Resistant Multi-Guard Soffit Vents (MGV) be used for intake as well as exhaust?
MGV Soffit Vents are used to provide intake air at the roof edge as part of a balanced attic or roof-ventilation system. They are not used for exhaust purposes.
Which of the metals offered for Fire Resistant Multi-Guard Soffit Vents (MGV) should I choose?
For all MGV products, galvanized steel is the WUI Listed choice and is the recommended go-to material. Bonderized steel, stainless steel and copper are also available options by request; please note that these are custom requests which are not covered under Cal Fire's Building Materials Listing.
Which metals do you make Fire Resistant Multi-Guard Soffit Vents (MGV) in?
Fire Resistant Multi-Guard Soffit Vents (MGV) are made from galvanized steel, Zincalume (Galvalume), stainless steel, copper, or aluminum.
Which mesh options are available for Fire Resistant Multi-Guard Soffit Vents (MGV)?
Available mesh configurations include 1/8 and 1/16. Mesh selection affects the product configuration and ventilation performance.
